Custom Function Call Editor

Make and use your own function call editors on your own functions.

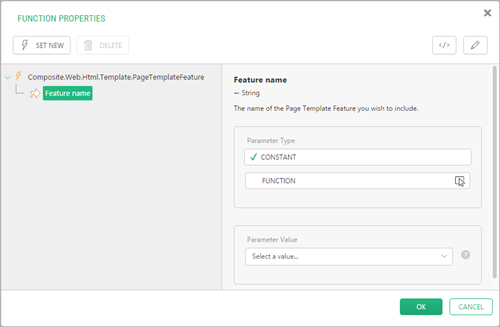

When you insert a function in Visual Editor, a function call editor window ("Function Properties") normally appears.

Here, you need to set required function parameters and/or can set optional parameters if any.

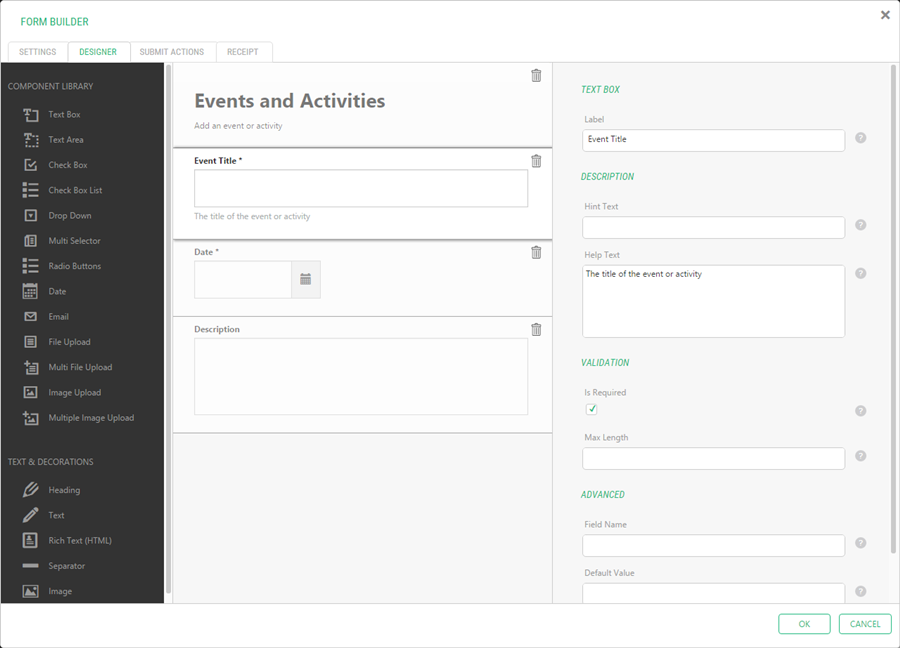

As C1 CMS is flexible and extensible, you can replace the standard function call editor with your own, custom editor. A good example of the custom function call editor is that used for the Composite.Forms.FormBuilder.Form function, part of the Composite.Forms.FormBuilder add-on.

There is an API call which will inform C1 CMS that there is a custom editor (see the code sample). The call specifies a function name, a tilde-based relative URL to the handler and width/height of the window to be opened.

To create and use a custom editor for a specific function:

  1. Create a function call handler. This could be a Web Form or a Razor page.
  2. Make a call to the API's RegisterCustomCallEditor method, specifying the function name, the relative URL to the handler created in Step 1 and the sizes of the editor window.

For Step 2, call RegisterCustomCallEditor on the application startup. For this, use the ApplicationStartup attribute on a class, which you can place in ~/App_Code, and call RegisterCustomCallEditor in the static OnInitialized method implemented within this class (see the code sample.

Let's have a look at the sample code that hooks up custom editors to some CMS Functions.
